| Brand Name : | MB |
| Model Number : | LT-172 Pex X Pex |
| Payment Terms : | T/T |
| Supply Ability : | 50000 Piece/Pieces per Month |
| Delivery Time : | 5-10 DAYS |

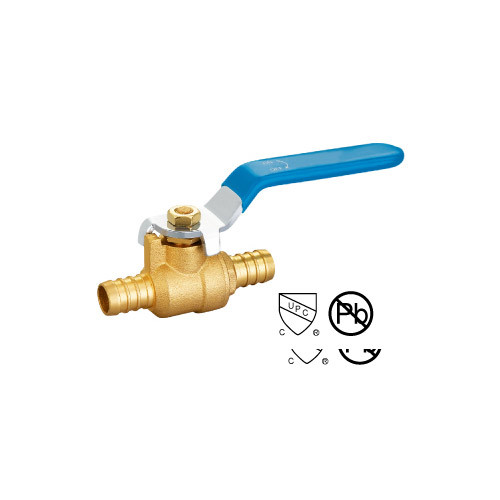

Pex X Pex brass ball valve brass valve Plain or Bronze Coating WOG used for pipe connection manually operation
Model NO.: LT-172 Pex X Pex
Forged Two-Piece Body • STD Port 1/2* -1″(600WOG, 150WSP)
Meets MSS SP-110 Specification Note: Plain or Bronze Coating
| MATERIAL LIST | |
| PART | SPECIFICATION |
| Handle | Steel With Chrome Or Zinc Alloy |
| Nut | Brass ASTM B124-C37700 |
| Stem | BraSS ASTM B124-C37700 Or ASTM B16-C36000 |
| Packing | °(PTFE) |
| Seats | °(PTFE) |
| 0-ring | NBR |
| Ball | Brass ASTM B124-C37700 0Г ASTMB16-C36000 with hard Chrome plating |
| Body & Cap | Brass (ASTM B124-C37700) |
| Gland | Brass (ASTM B124-C37700) |
| Retaining Ring | Brass (ASTM B124-C37700) |
| DIMENSIONS | ||||
| Model | 3/8" | 1/2′ | 3/4″ | 1'' |
| Size | ||||
| φD | 6 | 9.3 | 13.6 | 18.3 |
| L | 62.5 | 62 | 71 | 84 |
| H(ref) | 35.5 | 35.5 | 41 | 46.5 |
| A(ref) | 84.5 | 84.5 | 84.5 | 101 |
| Weight(G) | 105 | 117 | 192 | 304 |
|
|
